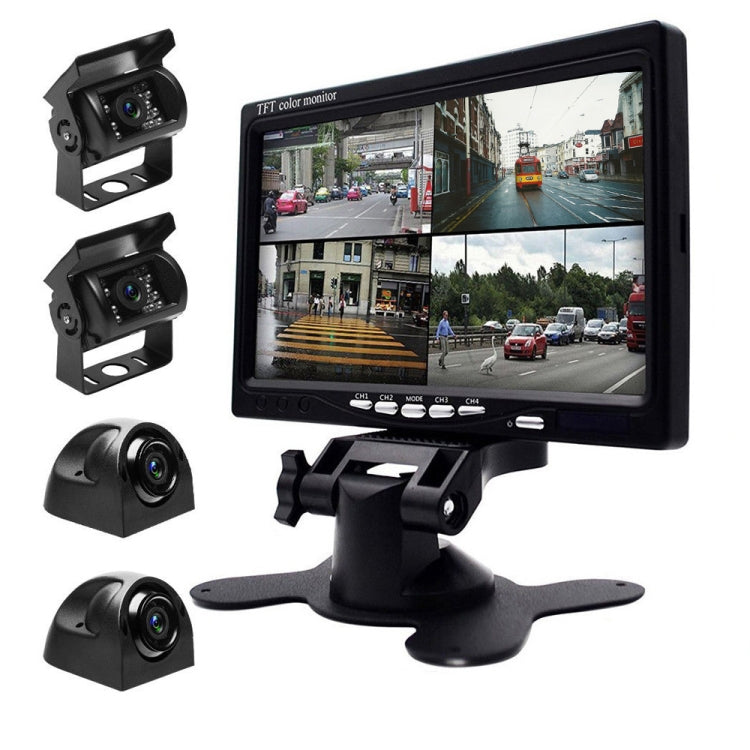

K0164 4-Camera Backup Camera System with 7-Inch Split-Screen Monitor

The K0164 four-camera backup camera system combines a 7-inch monitor with four camera inputs to help you view multiple areas around your vehicle. The quad split-screen display lets you check camera views on one screen while maneuvering or parking.

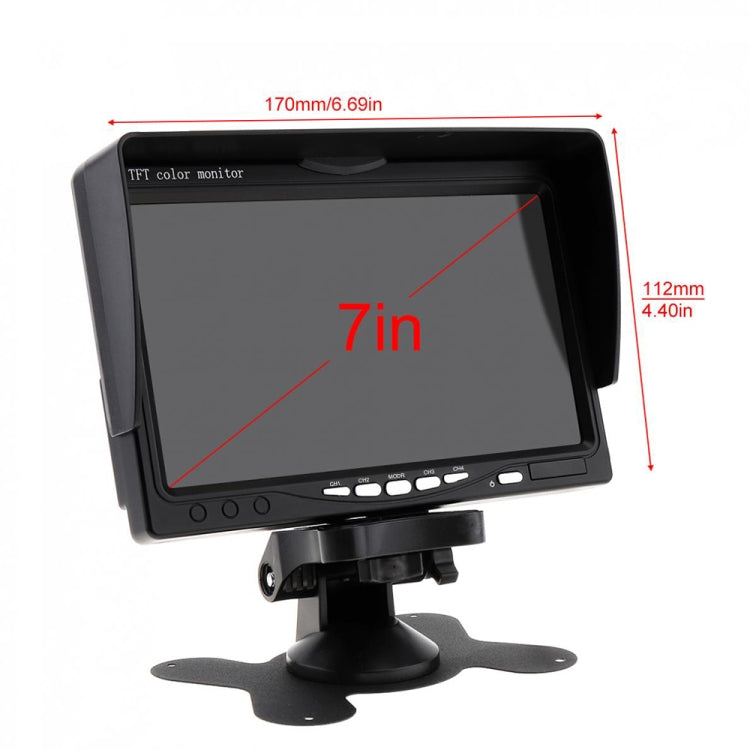

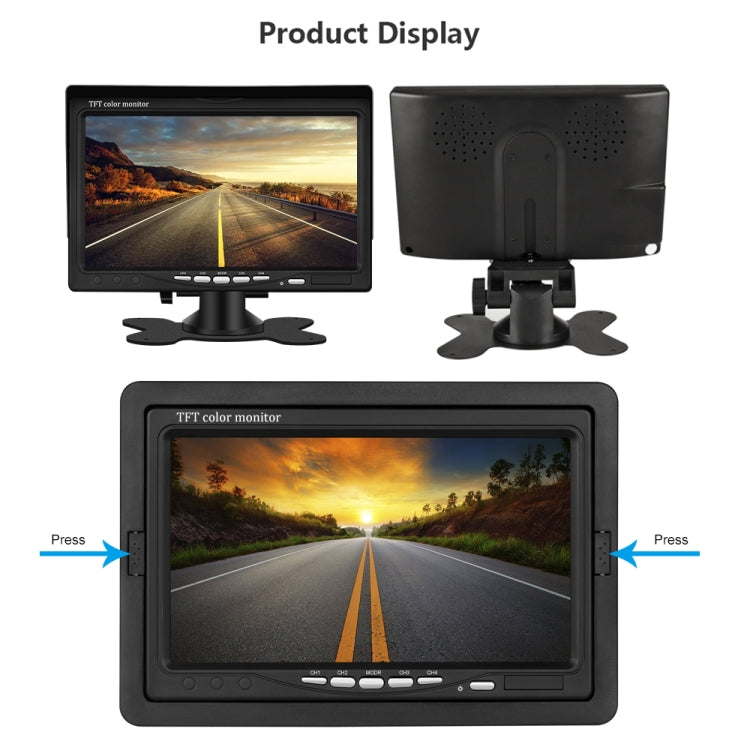

7-inch split-screen monitor

• Color TFT LCD with 800 × 480 resolution and 16:9 display format.
• Four video inputs: V1, V2, V3 and V4.
• Left/right and up/down image adjustment.
• ABS housing and listed 500:1 contrast ratio.
• PAL/NTSC video support.
• Monitor power input: DC 9–36V.
• Listed monitor operating temperature: -20°C to 60°C.
• Menu languages: Japanese, Russian, German, French, Spanish, Portuguese, Italian, Chinese and English.

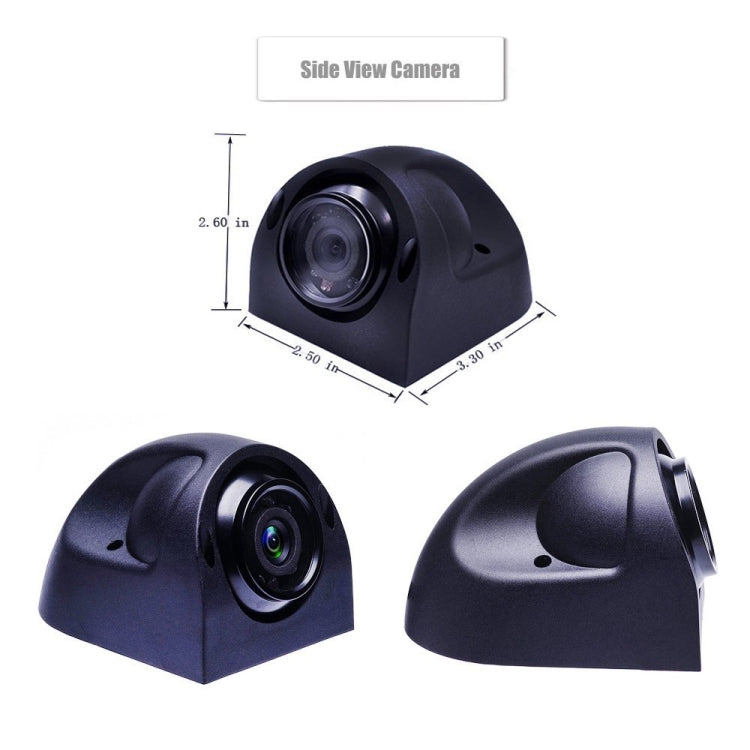

Side-view cameras

The side-view camera specifications list normal-view images without guide lines, a 1/4-inch Sharp CMOS sensor, 420 TV lines and night vision up to 10m. Listed power input is DC 9–36V, operating temperature is -10°C to 50°C and storage temperature is -25°C to 60°C.

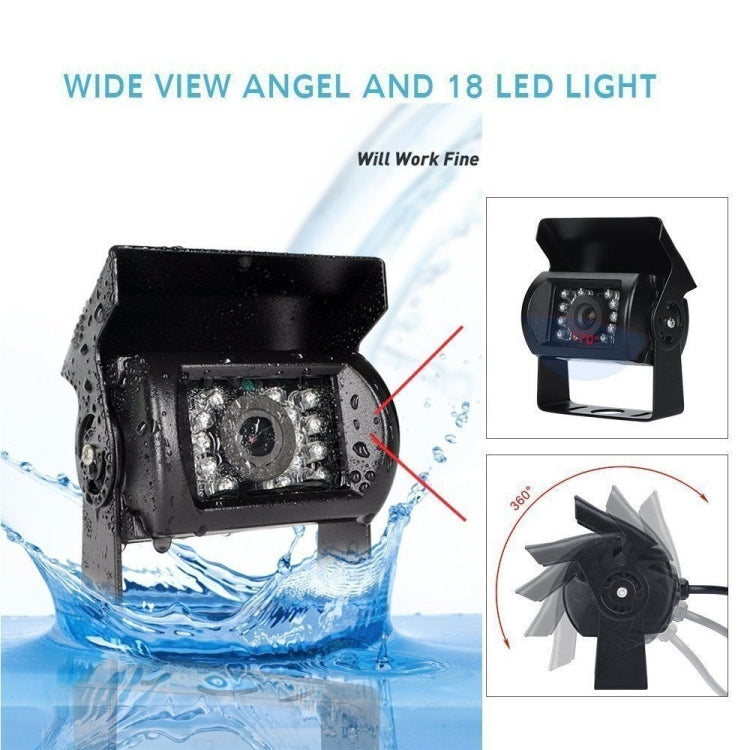

Front/rear camera specifications

• Listed front-view mode: normal image without guide lines. Listed rear-view mode: mirrored image with guide lines.
• 18 infrared LEDs and automatic switching to IR in low light.
• Listed night vision range: up to 30ft.
• Listed IP68 waterproof rating.
• CMOS 7030 sensor, 420 TV lines and PAL/NTSC support.
• RCA video output: 1.0Vp-p, 75Ω.
• Signal-to-noise ratio: greater than 48dB; automatic white balance.
• Camera power input: DC 9–24V.
• Listed operating temperature: -20°C to 60°C.

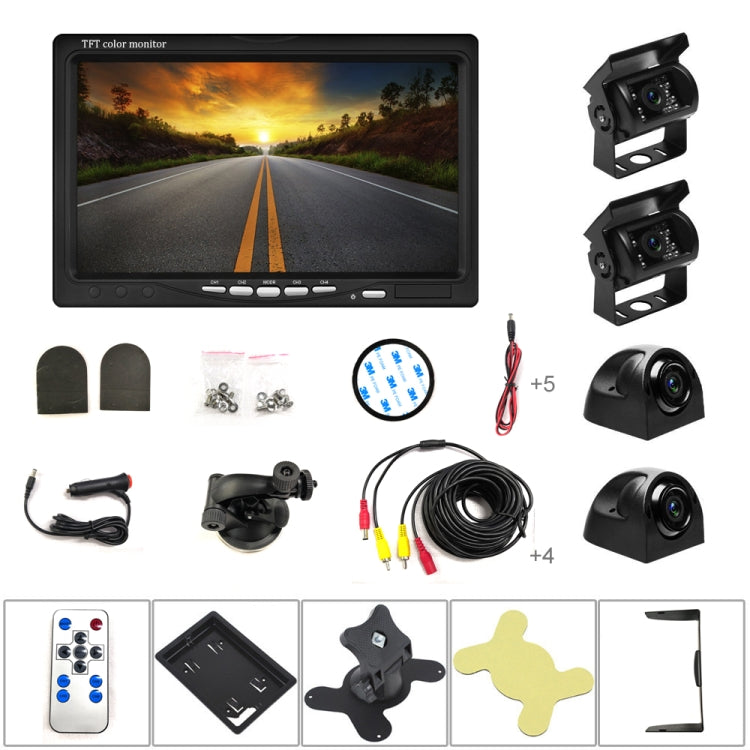

Package contents

• 1 quad split-screen monitor.
• 2 side-view cameras and 2 rear-view cameras, as listed in the package description.
• 4 video cables and 5 power cables.

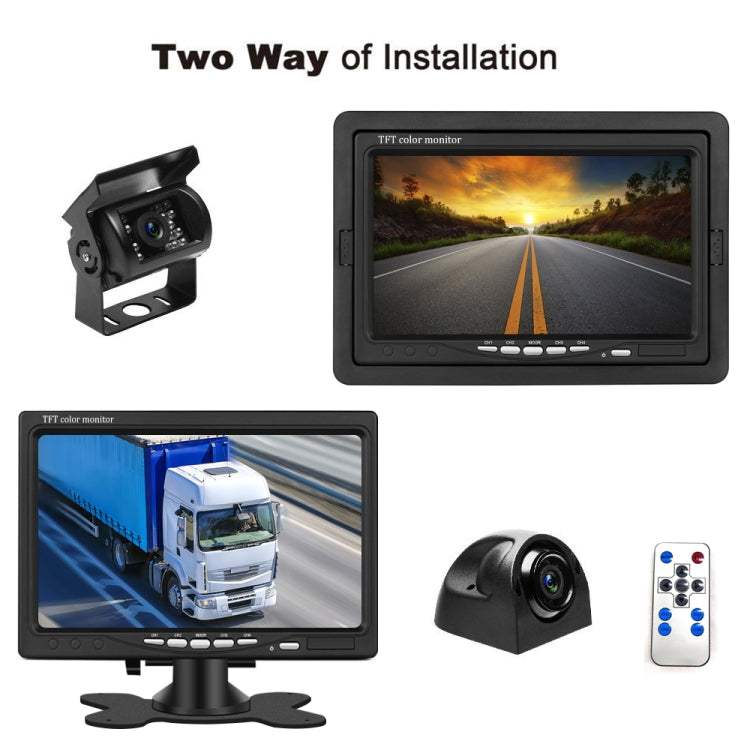

• 1 suction cup mount and 1 dashboard stand.
• 1 IR remote control and installation instructions.

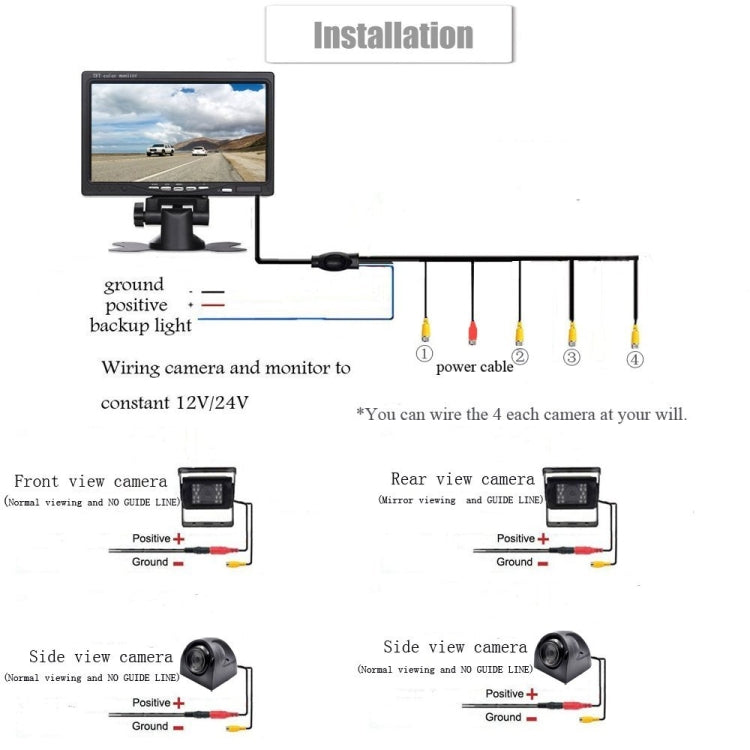

Check before installation

The monitor and cameras have different listed voltage ranges. Verify each component's power requirements, cable lengths and mounting locations before installation. The source describes front/rear camera functions but lists two rear-view cameras in the package; confirm the supplied camera configuration before purchase. The system supplements direct observation and does not replace checking your surroundings.
