Professional Long-Range Wireless Audio Transmission System

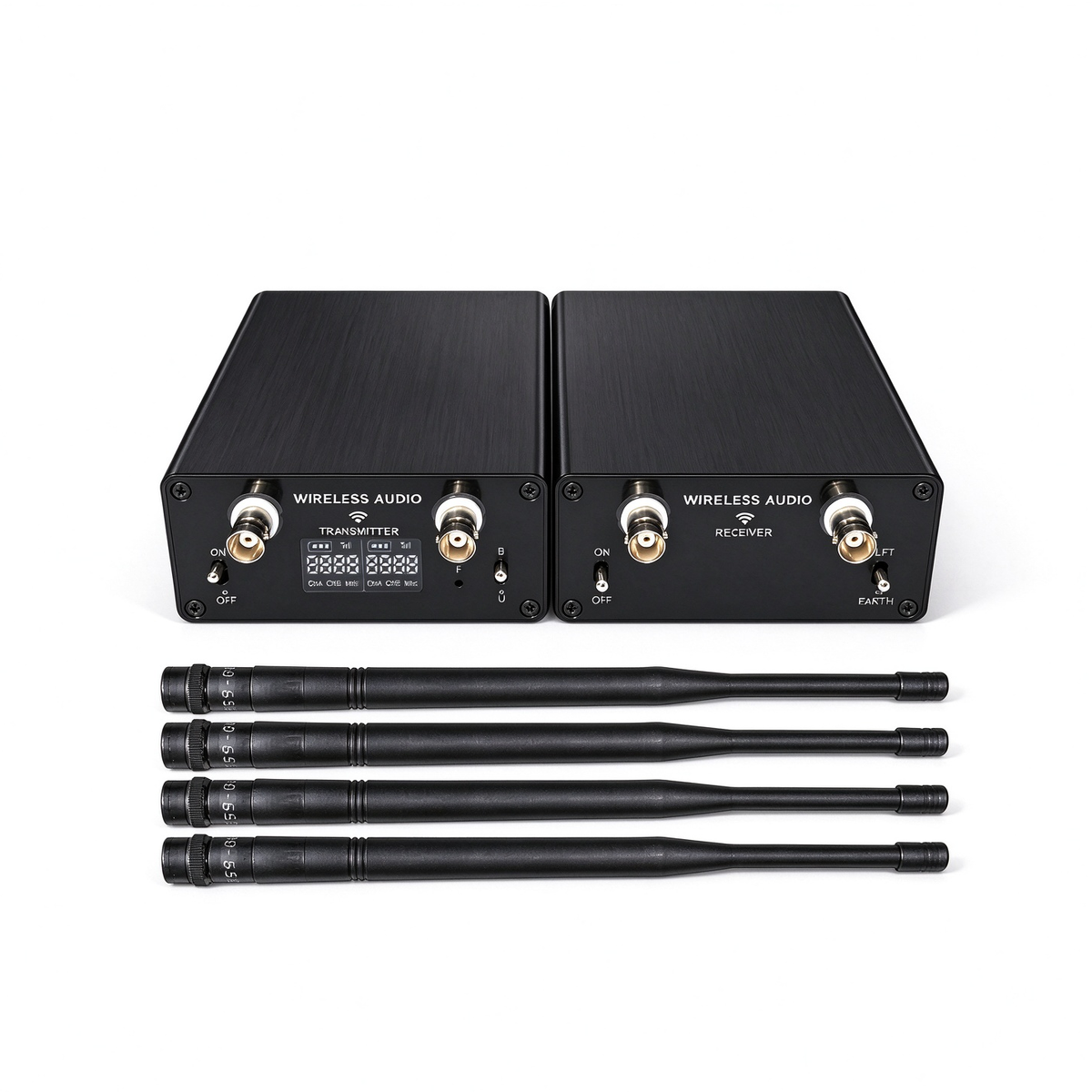

The MEASY AU680(BNC) is a professional UHF wireless audio transmitter and receiver system designed to transmit high-quality audio signals over long distances without the need for long audio cables.
With multiple professional and consumer audio interfaces—including XLR, RCA, 6.35mm and 3.5mm—the AU680(BNC) can connect to mixers, active PA speakers, amplifiers, stage monitors, musical instruments, computers and other audio equipment.
The system supports 1 transmitter to multiple receivers, making it suitable for professional PA systems, live events, stages, conferences, commercial installations, multi-zone audio distribution and other applications where reliable wireless audio transmission is required.

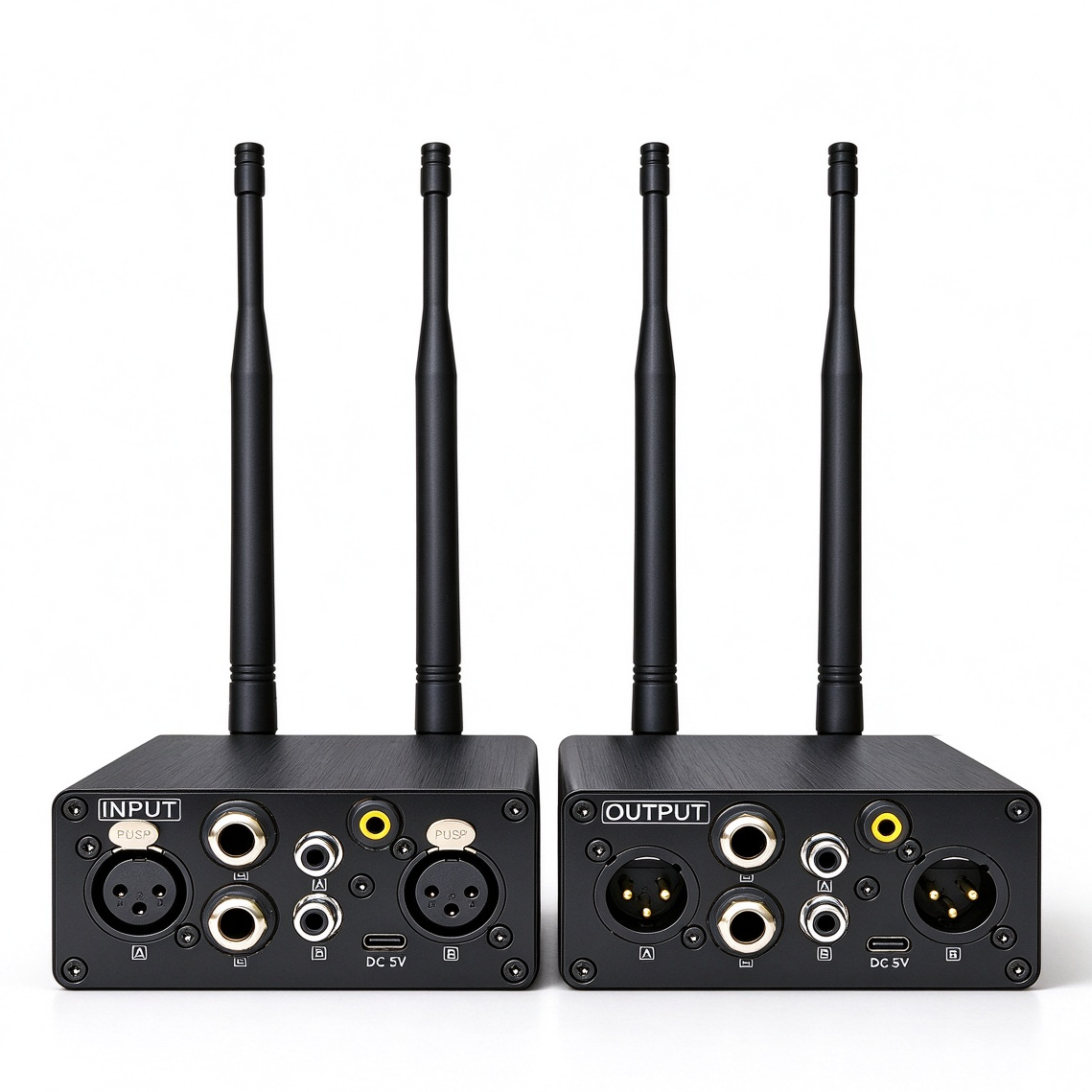

2. Audio Interface Configuration
Transmitter Interfaces
| Interface | Quantity | Application |
| XLR | 2 | Professional balanced/unbalanced audio |
| RCA | 1 set | Consumer / line-level audio |
| 6.35 mm | 1 | Guitar, keyboard, mixer and other audio equipment |
| 3.5 mm AUX | 1 | PC, laptop, mobile/media equipment |
Receiver Interfaces
| Interface | Quantity | Application |
| XLR | 2 | Professional audio output |
| RCA | 1 set | Amplifier / consumer audio equipment |
| 6.35 mm | 1 | Audio equipment / monitoring |
| 3.5 mm AUX | 1 | Headphones / consumer audio equipment |
The multi-interface architecture allows the same AU680(BNC) system to be integrated into a wide variety of professional and consumer audio systems without requiring additional interface converters.
3. Wireless Specifications
| Parameter | Specification |
| Wireless Technology | UHF Digital Wireless Audio |
| Frequency Band | 590–619 MHz |
| Modulation | GFSK |
| Number of Channels | 20 CH |
| Channel Spacing | 4 MHz |
| Transmission Distance | Up to 1000m / 2625 ft, open area, LOS* |
| Transmission Mode | 1 TX → 1 RX / 1 TX → Multiple RX |
| Maximum Receivers | Up to 200 RX |
| Simultaneous TX/RX Sets | Up to 10 sets by default* |
| Receiving Sensitivity | -90 dBm |
| Antenna | UHF wireless antenna system |
| Frequency Customization | Available according to project requirements |
- Actual transmission performance depends on RF interference, obstacles, antenna position, wall materials, installation environment and local regulations.
4. Audio Performance
| Parameter | Transmitter | Receiver |
| Audio Sampling Rate | 48 kHz | 48 kHz |
| Audio Resolution | 24 bit | 24 bit |
| Frequency Response | 20 Hz–20 kHz | 20 Hz–20 kHz |
| Audio Latency | <0.5 ms | <0.5 ms |
| SNR | 95 dB | 95 dB |
| Dynamic Range | 90 dB | 90 dB |
| THD | 0.3% @ 1 kHz | 0.3% @ 1 kHz |
| L/R Channel Isolation | 85 dB | 85 dB |
| Typical Audio Level | -5 dBu to +2.5 dBu* | -5 dBu to +2.5 dBu* |
* Audio-level specifications should be confirmed against the final hardware revision and production test standard before publication as a certified datasheet.
5. Input / Output Specifications
Transmitter
| Parameter | Specification |
| Input Interfaces | Dual XLR, RCA, 6.35 mm, 3.5 mm AUX |
| Input Impedance | 10 kΩ |
| Maximum Input Level | 1.0 Vpk* |
| XLR Mode | Balanced / Unbalanced |
| Audio Signal | Analog line-level / compatible audio signal |
| Wireless Output | UHF digital wireless audio |
Receiver
| Parameter | Specification |
| Output Interfaces | Dual XLR, RCA, 6.35 mm, 3.5 mm AUX |
| Output Impedance | 1 kΩ |
| Ground Control | Lift / Earth |
| Audio Output | Analog audio |
| Headphone/Monitoring Output Power | 30 mW / 50 mW @ RL=32 Ω* |
* Verify against the final production hardware version if used in a formal certification or engineering datasheet.
6. Professional XLR Signal Management
The AU680(BNC) transmitter provides a Balanced / Unbalanced XLR switch, allowing the system to adapt to different audio signal configurations.
Balanced Mode
Recommended for:
- Professional mixers
- Professional audio processors
- PA systems
- Stage equipment
- Long cable runs before wireless transmission
Balanced transmission provides improved resistance to external electromagnetic interference.
Unbalanced Mode
Suitable for:
- Consumer audio devices
- Certain media players
- Some musical instruments
- Consumer-level audio sources
This flexibility allows AU680(BNC) to integrate into both professional and consumer audio environments.
7. Ground Loop Noise Elimination
The AU680(BNC) receiver provides a Lift / Earth ground switch.
This feature is particularly useful when the transmitter and receiver are connected to different pieces of powered audio equipment.
If unwanted hum or buzzing is caused by a ground loop, the receiver's ground configuration can be adjusted to help eliminate the interference.
Typical application
Mixer → AU680(BNC) TX → Wireless UHF → AU680(BNC) RX → Active Speaker
The Ground Lift function can help reduce unwanted 50/60 Hz ground-loop hum in suitable installations.
8. Power Specifications
| Parameter | Transmitter | Receiver |
| Operating Voltage | DC 5 V | DC 5 V |
| Maximum Working Current | 120 mA | 40 mA |
| Typical Power Consumption | 0.6 W | 0.2 W |
| Power Supply | 5 V DC | 5 V DC |
The low-power design makes the AU680(BNC) suitable for permanent installations as well as portable applications.
9. Environmental Specifications
| Parameter | Specification |
| Operating Temperature | -16°C to +65°C |
| Application Environment | Indoor / Outdoor |
| Installation | Desktop / Equipment Rack / Speaker Installation* |
| Cooling | Natural ventilation |
| Operating Humidity | To be confirmed according to final production specification |
* Mechanical mounting accessories or mounting methods can be customized according to project requirements.
10. Transmission Distance
Open Area / Line-of-Sight
Current long-range AU680(BNC) specification:
Up to 1000m / 2625 ft
under suitable open-space, line-of-sight conditions.
Reference Wall-Penetration Performance
| Environment | Reference Distance |
| Open area | Up to 1000m |
| Through 1 wall | ≤100 m |
| Through 2 walls | ≤80 m |
| Through 3 walls | ≤60 m |
| Through 4 walls | ≤40 m |
Wall penetration results are for reference only. Reinforced concrete, brick walls, metal structures, RF interference and other obstacles can significantly reduce the effective transmission distance.
11. One-to-Many Wireless Audio Distribution
One of the major advantages of AU680(BNC) is its multi-receiver architecture.
Basic Configuration
1 × AU680(BNC) TX → 1 × AU680(BNC) RX
Suitable for:
- Mixer → Remote active speaker
- PC → Amplifier
- Instrument → Audio system

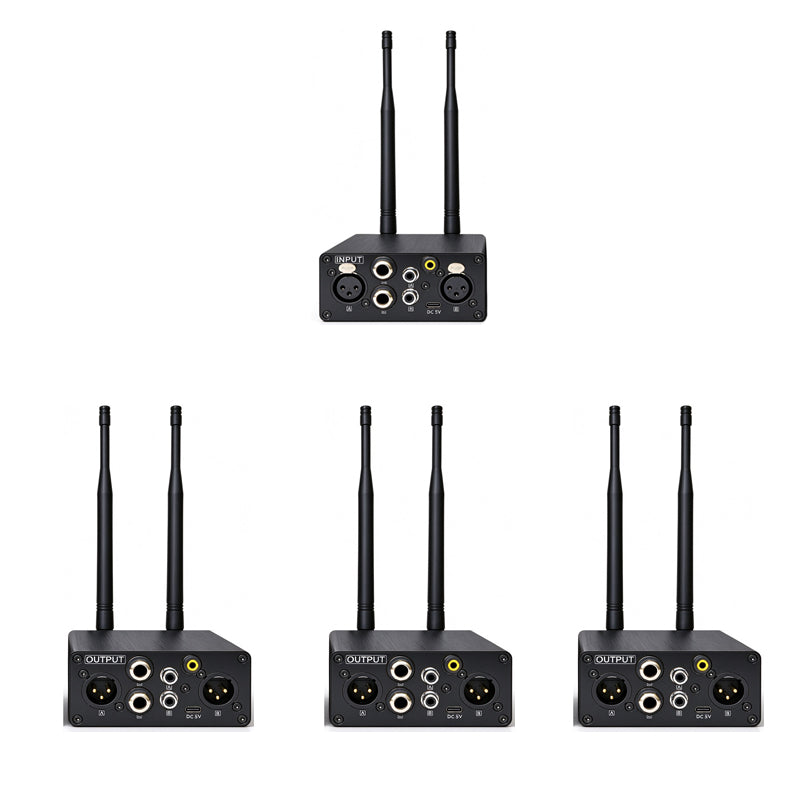

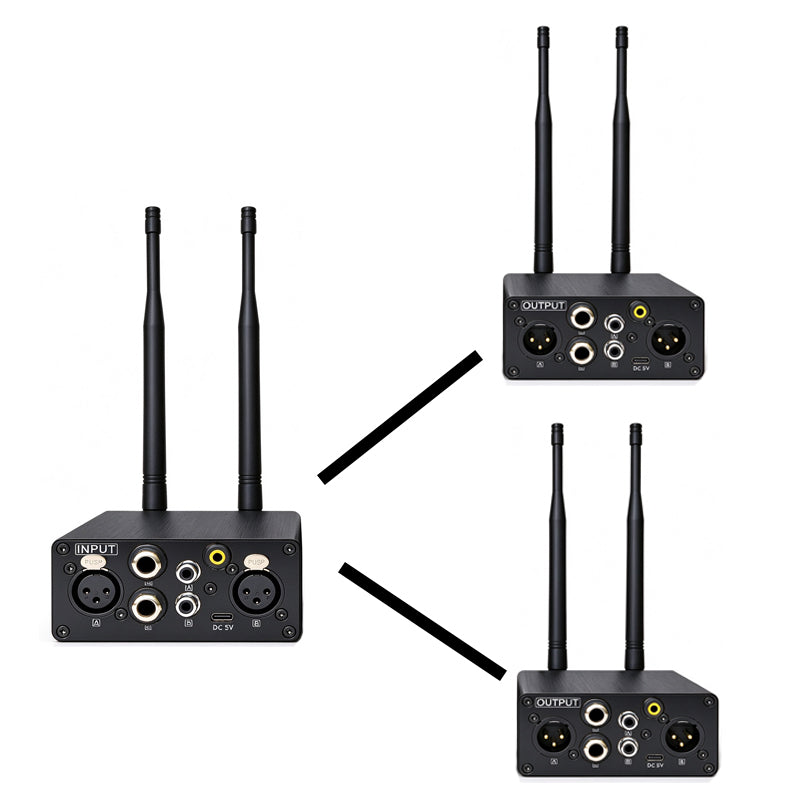

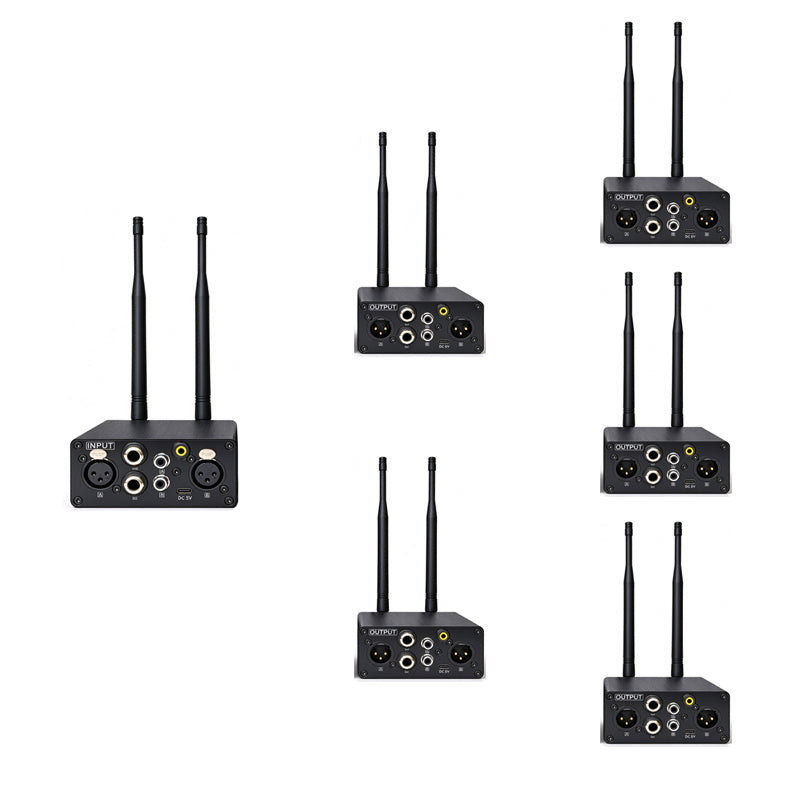

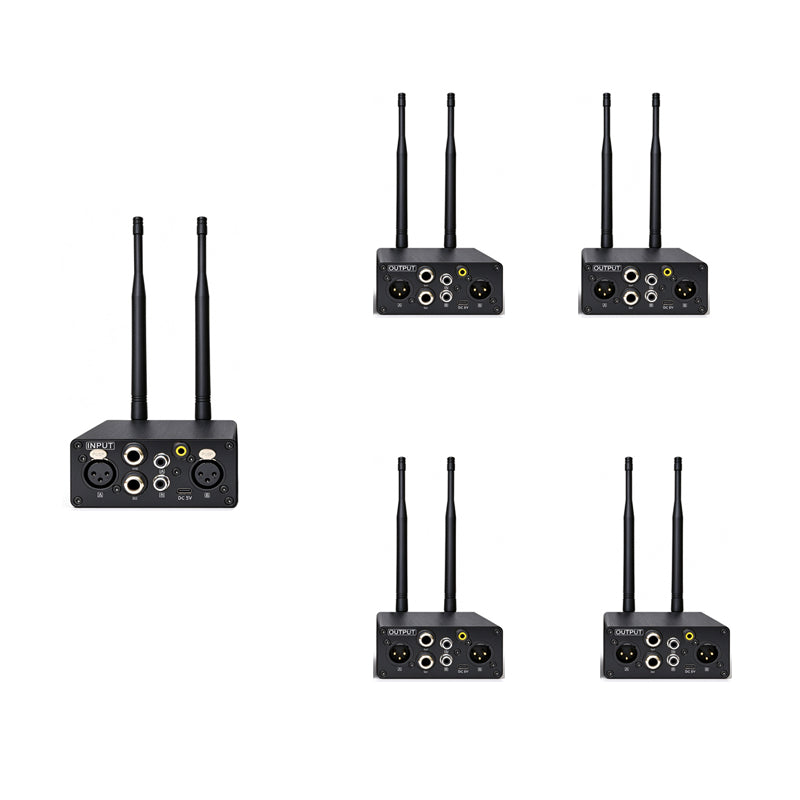

Multi-Receiver Configuration
1 × AU680(BNC) TX → Multiple AU680(BNC) RX
Up to 200 receivers can be supported according to the current product specification.
Suitable for:
- Multi-speaker systems
- Multi-zone audio
- Large conference rooms
- Exhibition halls
- Stage monitoring
- Commercial audio distribution
- Outdoor events
- Tour-guide systems
12. Typical System Applications
Application 1 — Mixer to Active PA Speaker
Audio Mixer → AU680(BNC) TX → UHF Wireless → AU680(BNC) RX → Active PA Speaker
Eliminates long XLR audio cables between the mixing position and remote powered speakers.
Application 2 — Mixer to Multiple Active Speakers
Audio Mixer
↓
AU680(BNC) TX
↓
UHF Wireless
↓
Multiple AU680(BNC) RX
↓
Multiple Active Speakers
Ideal for distributed PA systems and large venues.
Application 3 — Musical Instrument Wireless Transmission
Guitar / Keyboard / Instrument
↓
AU680(BNC) TX
↓
UHF Wireless
↓
AU680(BNC) RX
↓
Amplifier / PA System
The ultra-low latency design makes the system suitable for real-time audio applications.
Application 4 — Wireless Audio Monitoring
Mixer / Audio Processor
↓
AU680(BNC) TX
↓
Wireless UHF
↓
AU680(BNC) RX
↓
Stage Monitor / Active Speaker
Useful for stage monitoring and temporary event installations.
13. Recommended Audio Equipment Compatibility
The AU680(BNC) can be integrated with:
- Professional audio mixers
- Digital mixers
- Analog mixers
- Audio processors
- DSP processors
- Active PA speakers
- Powered monitors
- Studio monitors
- Power amplifiers
- Headphone monitoring systems
- Electric guitars
- Keyboards
- Electronic instruments
- PCs and laptops
- CD/media players
- Commercial audio systems
Important
AU680(BNC) is a wireless audio signal transmission device, not a power amplifier.
It transmits audio line-level signals wirelessly.
Therefore:
AU680(BNC) RX → Active Speaker
is a direct application.
For a passive speaker system:
AU680(BNC) RX → Power Amplifier → Passive Speakeris required.
14. Competitive TechnicalAdvantages
UHF Instead of Bluetooth
AU680(BNC) is designed for professional wireless audio signal transmission rather than ordinary consumer Bluetooth audio applications.
Key advantages include:
- Longer transmission distance
- Very low latency
- Multi-receiver capability
- Professional XLR connectivity
- Balanced signal support
- Ground-loop noise management
- Multi-channel system architecture
Professional Audio Connectivity
Instead of requiring separate converters, AU680(BNC) integrates:
XLR + RCA + 6.35 mm + 3.5 mm
into one wireless audio platform.
Ultra-Low Latency
<0.5 ms
is designed for applications where noticeable audio delay cannot be tolerated.
15. Complete Technical Specification Summary
| Category | AU680(BNC) Specification |
| Product Type | UHF Wireless Audio Transmitter & Receiver |
| Product Code | AU680(BNC) |
| Wireless Band | 590–619 MHz UHF* |
| Modulation | GFSK |
| Channels | 20 CH |
| Channel Spacing | 4 MHz |
| Transmission Distance | Up to 1000m LOS* |
| Multi-Receiver | 1 TX → up to 200 RX* |
| Simultaneous Systems | Up to 10 sets by default* |
| Audio Sampling | 48 kHz |
| Audio Resolution | 24 bit |
| Frequency Response | 20 Hz–20 kHz |
| Latency | <0.5 ms |
| SNR | 95 dB |
| Dynamic Range | 90 dB |
| THD | 0.3% @ 1 kHz |
| L/R Isolation | 85 dB |
| TX Input | XLR / RCA / 6.35 mm / 3.5 mm |
| RX Output | XLR / RCA / 6.35 mm / 3.5 mm |
| TX Input Impedance | 10 kΩ |
| RX Output Impedance | 1 kΩ |
| XLR Signal Mode | Balanced / Unbalanced |
| Ground Control | Lift / Earth |
| TX Voltage | DC 5 V |
| RX Voltage | DC 5 V |
| TX Current | ≤120 mA |
| RX Current | ≤40 mA |
| TX Power | Approx. 0.6 W |
| RX Power | Approx. 0.2 W |
| Operating Temperature | -16°C to +65°C |
| Frequency Customization | Available |
| Application | Professional / Commercial / Consumer Audio |
* Specifications may vary according to hardware revision, frequency version, regional regulations and customized configuration. Final engineering specifications should be confirmed before mass production or certification.
16. Product Positioning
AU680(BNC) is ideal for:
Wireless Mixer-to-Speaker
Wireless Audio Distribution
Wireless PA Systems
Wireless Stage Monitoring
Wireless Instrument Audio
Commercial Audio Installation
Conference & Event Audio
Multi-Zone Audio
Outdoor Event Audio
Studio & Live Streaming Monitoring
Core Selling Points
UHF Long Range + Multi-Interface + Ultra-Low Latency + Professional XLR + One-to-Many + Ground Loop Protection
The AU680(BNC) is designed to replace long analog audio cable runs while maintaining a professional, flexible and low-latency audio connection.
